CNC machining tolerances measurement showing precision machining tolerances verification on aerospace components

CNC Machining Tolerances: Achieving Precision in Aerospace Manufacturing

Achieving precise CNC machining tolerances separates exceptional aerospace components from standard industrial parts. Understanding precision machining tolerances enables engineers to design components that balance functional requirements with manufacturing capabilities and cost constraints. As India’s first Airbus-approved manufacturing facility, Unitritech’s expertise in tight tolerance machining helps customers optimize designs for quality, performance, and manufacturability while meeting stringent aerospace tolerance requirements.

The ability to hold tight tolerances directly impacts component fit, assembly efficiency, operational performance, and long-term reliability. This comprehensive guide explores how CNC machining tolerances are achieved, what factors influence dimensional accuracy, and how to specify appropriate tolerances for your aerospace components ensuring optimal results without unnecessary cost.

Precision machining tolerances verification using coordinate measuring machine for aerospace components

Understanding CNC Machining Tolerances Fundamentals

CNC machining tolerances represent the permissible variation from specified dimensions that a manufactured part can have while still functioning correctly. Every machining process has inherent limitations in the dimensional accuracy it can achieve, influenced by machine capabilities, tooling, material properties, and environmental conditions.

Standard precision machining tolerances for general CNC work typically range from ±0.005 inches to ±0.010 inches on most dimensions. However, aerospace applications often require tight tolerance machining achieving ±0.001 inches or tighter on critical features. Understanding when these tighter tolerances are truly necessary versus when standard tolerances suffice is crucial for cost-effective manufacturing.

The difference between achieving ±0.005 inches versus ±0.001 inches may seem small, but the manufacturing implications are significant. Tighter tolerances require better machines, more frequent tool changes, slower cutting speeds, additional inspection time, and potentially secondary operations like grinding. Each increment of tighter tolerance exponentially increases manufacturing cost and lead time.

Aerospace tolerance requirements demand exceptional precision because component failures can have catastrophic consequences. Aircraft components operate under extreme stresses, temperatures, and vibrations where dimensional accuracy directly impacts safety. A landing gear component with improper tolerances might experience premature wear or unexpected failure, while an engine part with dimensional errors could cause vibration, efficiency loss, or mechanical damage.

Factors Affecting CNC Machining Tolerances Achievement

Multiple variables influence the CNC machining tolerances achievable on any component. Machine tool capabilities form the foundation, with newer machines featuring linear scales, thermal compensation, and rigid construction achieving tighter tolerances than older equipment. High-precision machining centers can hold tolerances to ±0.0001 inches under optimal conditions, while standard machines typically achieve ±0.002 to ±0.005 inches.

Material Properties and Machining Behavior:

Thermal effects significantly impact tight tolerance machining capabilities. As machines and workpieces heat during operation, thermal expansion causes dimensional changes. A steel part increasing from 68°F to 100°F expands approximately 0.0006 inches per foot of length. Temperature-controlled manufacturing environments, coolant systems, and thermal compensation software help minimize these effects on CNC machining tolerances.

Tool wear progressively affects dimensional accuracy throughout production runs. New cutting tools produce parts at the tighter end of the tolerance range, while worn tools drift toward the looser limit. Implementing tool life management, preset tool measurement, and automatic tool offset compensation ensures consistent precision machining tolerances throughout production rather than just on first articles.

Tolerance Specification Best Practices

Specifying appropriate CNC machining tolerances requires balancing functional requirements with manufacturing realities and cost constraints. The fundamental principle: specify the loosest tolerance that satisfies functional requirements. Tighter tolerances than necessary waste resources without improving performance.

Apply tight tolerance machining only where functionally critical. Bearing surfaces, mating interfaces, and precision fits require tight control, while non-critical dimensions can use standard tolerances. For example, an actuator housing might require ±0.001 inches on bore diameter for proper bearing fit while allowing ±0.010 inches on overall length where it doesn’t affect function.

Use geometric dimensioning and tolerancing (GD&T) to communicate design intent clearly. GD&T specifies form, orientation, profile, location, and runout tolerances more effectively than coordinate dimensioning alone. Aerospace tolerance requirements increasingly mandate GD&T for critical components because it better controls geometric relationships essential for assembly and performance.

Consider tolerance stack-up in assembly design. When multiple components mate, their individual tolerances combine affecting final assembly dimensions. Statistical tolerance analysis helps predict assembly variation and optimize individual component tolerances. This approach often reveals opportunities to loosen some precision machining tolerances while tightening others to achieve desired assembly results cost-effectively.

Achievable Tolerances for Common Machining Operations

Different CNC machining operations achieve varying CNC machining tolerances based on their inherent characteristics and cutting mechanics.

Standard 3-axis milling typically achieves ±0.005 inches on most features with good process control. Multi-axis milling can hold ±0.002 inches to ±0.003 inches on complex contours. High-precision milling centers with thermal compensation and optimal conditions achieve ±0.001 inches on critical dimensions. Face milling operations produce excellent flatness, typically within 0.002 inches across reasonable surface areas.

Turning operations generally achieve tighter precision machining tolerances than milling due to the rotational symmetry and rigid workholding. Standard CNC turning holds ±0.002 inches to ±0.003 inches on diameters. Precision turning with optimal tooling and conditions achieves ±0.0005 inches to ±0.001 inches. Diameter tolerances are typically tighter than length tolerances because diameter measurements are less affected by workpiece deflection.

Boring operations for precision holes achieve ±0.0005 inches to ±0.001 inches on diameter with excellent roundness and surface finish. Reaming produces the tightest hole tolerances, typically ±0.0002 inches to ±0.0005 inches with superior roundness and finish. These processes are essential for tight tolerance machining of bearing bores and precision fit applications in aerospace components.

When aerospace tolerance requirements exceed normal machining capabilities, grinding provides the solution. Cylindrical grinding achieves ±0.0001 inches to ±0.0002 inches on diameters. Surface grinding produces flatness within 0.0002 inches across moderate areas. Precision grinding represents the ultimate in dimensional control but adds significant cost and time compared to conventional machining.

Quality Control and Tolerance Verification

Achieving CNC machining tolerances means nothing without proper measurement and verification. Coordinate measuring machines (CMMs) provide the gold standard for dimensional inspection, measuring features with accuracy to ±0.0001 inches and generating comprehensive inspection reports documenting conformance to specifications.

Inspection Strategy for Precision Components:

Temperature control during inspection is crucial for tight tolerance machining verification. Industry standards specify 68°F (20°C) as the measurement reference temperature. Components and measuring equipment must stabilize at this temperature for accurate measurement of tight tolerances. Temperature variations of just 2°F can cause measurement errors exceeding ±0.0001 inches on precision components.

Measurement uncertainty must be considered when verifying aerospace tolerance requirements. As a rule of thumb, measurement system accuracy should be at least 10 times better than the tolerance being verified. For ±0.001 inch tolerances, measurement systems should resolve to ±0.0001 inches. This ensures measurement uncertainty doesn’t consume significant tolerance budget or cause incorrect accept/reject decisions.

Cost Implications of Tight Tolerances

Understanding the cost impact of CNC machining tolerances helps designers make informed decisions balancing performance requirements with budget constraints. Manufacturing costs don’t increase linearly with tighter tolerances—the relationship is exponential. Moving from ±0.005 inches to ±0.002 inches might increase costs 50%, while tightening further to ±0.001 inches could double costs again.

Factors Driving Tolerance-Related Costs:

The most cost-effective approach specifies appropriate precision machining tolerances for each feature based on functional requirements. Critical mating surfaces might require ±0.001 inches while non-critical dimensions use ±0.010 inches. This targeted approach concentrates manufacturing precision where it matters most, optimizing quality and cost simultaneously.

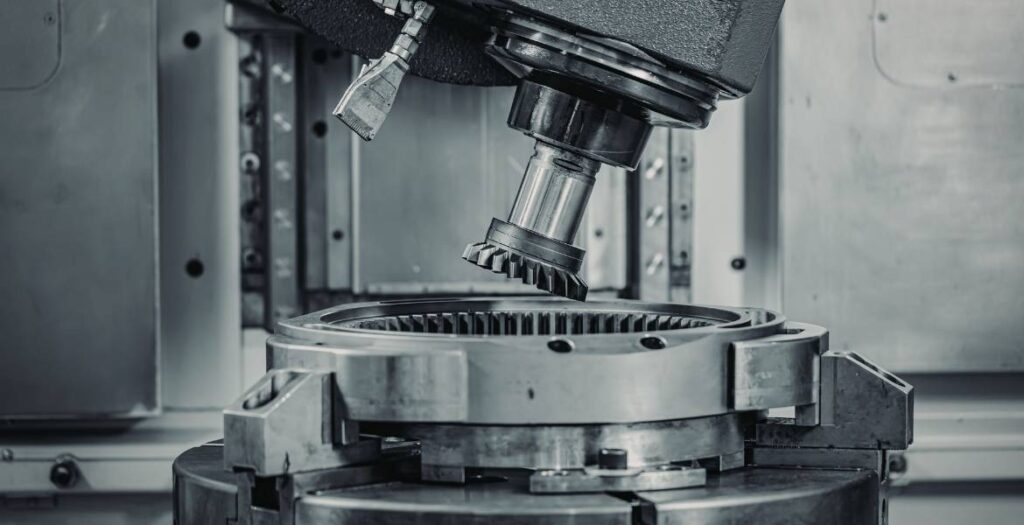

Aerospace tolerance requirements chart showing achievable CNC machining tolerances for different operations

Designing for Manufacturability and Tolerances

Design optimization significantly impacts achievable CNC machining tolerances and manufacturing cost. Orient critical tolerance features to minimize workpiece setup changes because each setup introduces positioning error accumulating through tolerance stack-up. Designing parts machinable in single setups improves dimensional relationships between features while reducing cost and lead time.

Avoid unnecessarily tight tolerances on deep pockets or thin walls where tool deflection makes tight tolerance machining difficult. Recognize that as cutting tools extend deeper into workpieces, deflection increases making tight tolerances harder to achieve. Design modifications like adding support ribs or adjusting geometries can enable tighter tolerances where functionally necessary.

Consider material selection’s impact on aerospace tolerance requirements achievement. Materials with good machinability and dimensional stability like aluminum alloys enable tighter tolerances more easily than difficult-to-machine materials like titanium or superalloys. When material choice is flexible, machinability should be considered alongside mechanical properties for optimal manufacturability.

Engage manufacturing partners early during design development. Unitritech’s design for manufacturability reviews help optimize components for precision machining tolerances achievement, identifying opportunities to relax non-critical tolerances, modify geometries for better machinability, and ensure designs are producible at target cost and quality levels.

Unitritech's Precision Machining Capabilities

As India’s first Airbus-approved manufacturing facility with AS9100 certification, Unitritech maintains advanced CNC machining capabilities achieving demanding aerospace tolerance requirements. Our modern machining centers from DMG Mori, Mazak, and Haas feature thermal stability, linear scales, and precision ball screws enabling tight tolerance machining to ±0.001 inches on critical aerospace components.

Our integrated approach combining investment casting with precision machining provides unique advantages for CNC machining tolerances achievement. By controlling both casting and machining processes, we optimize as-cast dimensions minimizing machining stock removal, maintain tighter dimensional relationships between features, and ensure consistent quality from raw casting through finished component.

NADCAP-accredited quality systems and CMM inspection capabilities verify precision machining tolerances with documented evidence supporting aerospace certification. Our temperature-controlled inspection room, calibrated measurement equipment, and trained inspectors ensure dimensional verification accuracy supporting the tightest tolerances our customers require.

Frequently Asked Questions

Standard CNC machining tolerances for aerospace typically range from ±0.002 inches to ±0.005 inches on most dimensions, with tight tolerance machining to ±0.001 inches or tighter on critical features like bearing bores, mating surfaces, and precision fits. The appropriate tolerance depends on functional requirements and aerospace tolerance requirements for specific applications.

Precision machining tolerances significantly impact cost exponentially rather than linearly. Tightening tolerances from ±0.005 inches to ±0.001 inches can increase manufacturing costs 100-200% due to slower machining, specialized tooling, increased inspection time, higher scrap rates, and potential secondary grinding operations required for tight tolerance machining achievement.

Tight tolerance machining is limited by machine tool accuracy, thermal expansion effects, material properties, tool deflection, vibration, workholding rigidity, and environmental conditions. Advanced machining centers with thermal compensation, rigid construction, and optimal cutting strategies overcome these limitations achieving CNC machining tolerances to ±0.0001 inches under controlled conditions.

Aerospace tolerance requirements should use geometric dimensioning and tolerancing (GD&T) specifying form, orientation, and location controls alongside dimensional tolerances. Apply tight tolerance machining only to functionally critical features while using standard precision machining tolerances on non-critical dimensions, clearly communicating design intent and functional requirements to manufacturers.

CNC machining tolerances for aerospace are verified using coordinate measuring machines (CMMs) providing ±0.0001 inch accuracy, micrometers and calipers for routine checks, optical comparators for profile verification, and surface finish measurement equipment. All inspection occurs in temperature-controlled environments with calibrated equipment ensuring measurement uncertainty doesn’t compromise aerospace tolerance requirements verification.

Conclusion

Mastering CNC machining tolerances enables engineers to design aerospace components balancing performance requirements with manufacturing realities and cost constraints. Understanding precision machining tolerances achievable through various operations, factors affecting accuracy, and proper tolerance specification practices optimizes designs for quality and manufacturability.

Applying tight tolerance machining judiciously to critical features while using standard tolerances elsewhere delivers optimal results. Unitritech’s expertise in achieving demanding aerospace tolerance requirements through advanced equipment, skilled machinists, and rigorous quality systems ensures your components meet specifications consistently.

Partner with Unitritech’s engineering team for design for manufacturability reviews optimizing your components for CNC machining tolerances achievement. Our integrated casting and machining capabilities combined with AS9100 certification deliver precision aerospace components meeting the tightest specifications.
